Table structure and schema editing

Inspect columns, indexes, foreign keys, checks, privileges and DDL for any table, and change columns with a reviewable SQL script before it is applied.

2 min readUpdated Oct 10, 2026

On this page

Tabs
Change a column
Create and manage objects

Open a table's structure to see how it is built, and to change it. The view reads the live schema, so it is always current.

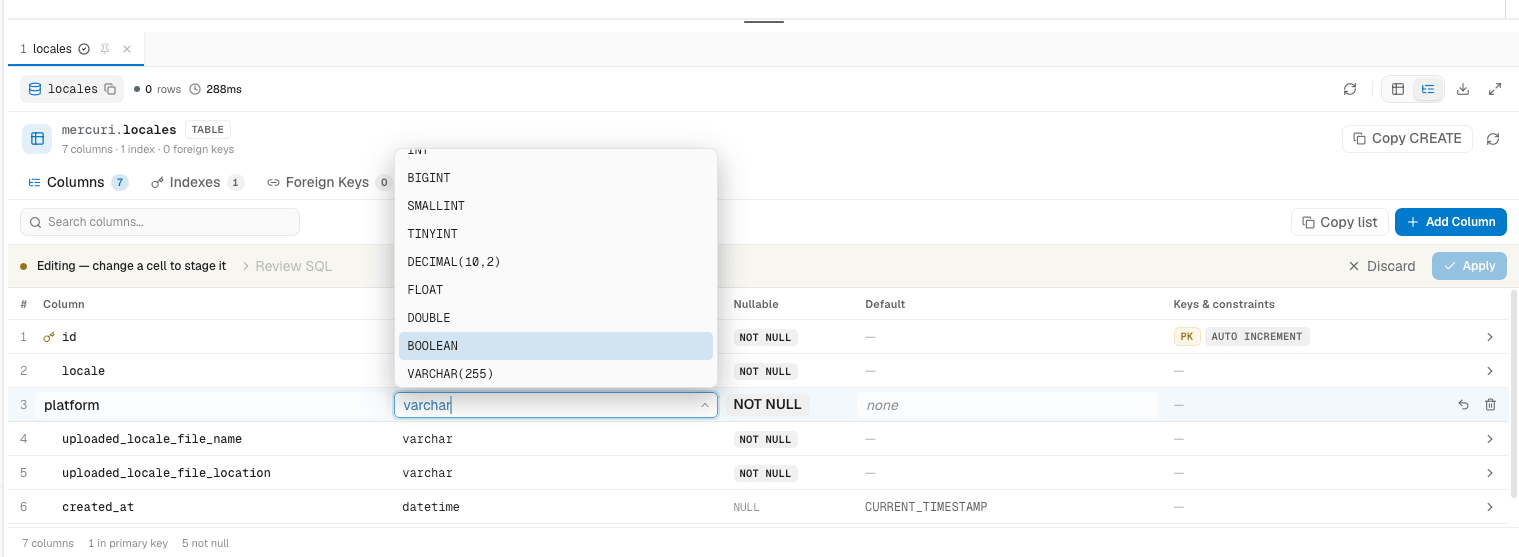

The table structure view on the Columns tab, listing column names, types, nullability, defaults and key badges. — The Columns tab of the table structure view.

Tabs#

Tab	Shows
Columns	Name, type, nullability, default and badges such as PK, UNIQUE and AUTO INCREMENT.
Indexes	Index names, columns and uniqueness.
Foreign Keys	Which columns reference which tables.
Checks	Check constraints.
Partitions	Child partitions, for partitioned tables.
Privileges	Who can do what on the table (PostgreSQL).
Policies	Row-level security policies (PostgreSQL).
Statistics	Table statistics (PostgreSQL).
DDL	The full CREATE statement for the table (PostgreSQL).

Amazon Redshift shows Distribution & Sort and Foreign Keys instead, since it has no indexes or checks. A search box filters the list, and the copy buttons put the column list, CREATE TABLE, CREATE INDEX or foreign-key ALTER TABLE statements on your clipboard.

Change a column#

Edit in place
Change a column's name, type, nullability or default straight in the Columns tab, or add or drop a column. Type names suggest as you type.
Review the SQL
Edits are staged, not applied. The bar at the bottom counts pending changes and Review SQL shows the exact ALTER TABLE statements RowDex will run.
Apply or discard
Click Apply to run the script, or Discard to drop your edits. If a change would drop a primary-key column, RowDex warns you.

Create and manage objects#

You do not need to leave RowDex to change structure. Right-click an object in the sidebar:

Right-click on	Actions
Schema	Create table, rename schema, drop schema.
Table	Create table, rename table, create index, truncate table, drop table, import CSV.
View	Drop view.
Column	Rename column, drop column.

The sidebar toolbar also has New table and, for PostgreSQL, MySQL and MariaDB, New database. Available actions vary by engine; unsupported ones are hidden.
